OMNITRONIC Entertainment Mixer Series
The modern entertainment industry, especially hotels, bars or theme parks, requires very high standards in quality and features for sound devices.
The OMNITRONIC EM-series is especially designed for this industry and offers the highest flexibility and quality in very small mixer casings.
The EM-series offers a variety of connection possibilities and also convinces by an ergonomic design and easy use.
The special housing design and the state-of-the-art construction are further reasons which make the EM-series the first choice for installers.

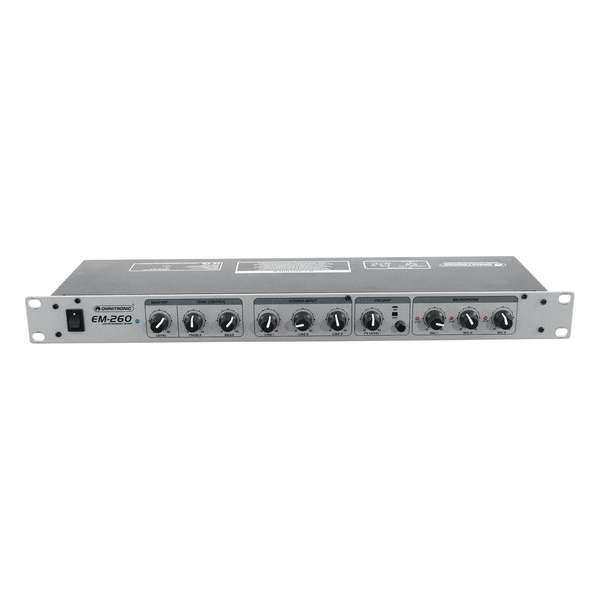

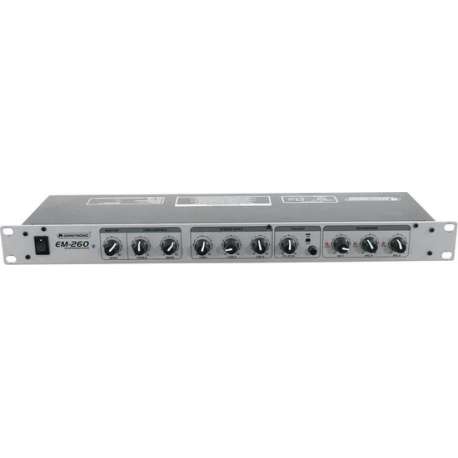

6-channel microphone/line mixer, Silver

6 inputs (3 x mic/line and 3 x line) for mixing to 1 stereo output
Ideal e.g. for karaoke when microphones need to mixed with CDs
3 mono input channels mic/line (XLR, bal.), switchable
3 stereo line input channels (RCA)
Clip LED for each microphone channel
Each microphone input with optional 12 V phantom power
FX send/return with FX level control
Stereo master out (6.3 mm jack) with 2-band equalizer (highs and lows) and level control
Stereo record output (RCA)
Rack installation, 1 U
Power supply:
115/230 V AC, 50/60 Hz

Power consumption:
35 W

Inputs MIC 1-3:
XLR

Max. input level:
-14 dB

Inputs LINE 1-3:
stereo RCA

Max. input level:
24 dB

RETURN:
6.3 mm stereo jack

Outputs:


MASTER:
6.3 mm stereo jack

REC:
stereo RCA

SEND:
6.3 mm jack

Tone control:


High:
-12 dB to +12 dB/ 10 kHz

Bass:
-12 dB to +12 dB/ 100 Hz

S/N ratio:
69 dB

Frequency range:
20-20000 Hz

Distortion:
0.025 %

Dimensions (W x D x H):
482 x 123 x 43 mm (19, 1 U)

Weight:
2.2 kg
